Description

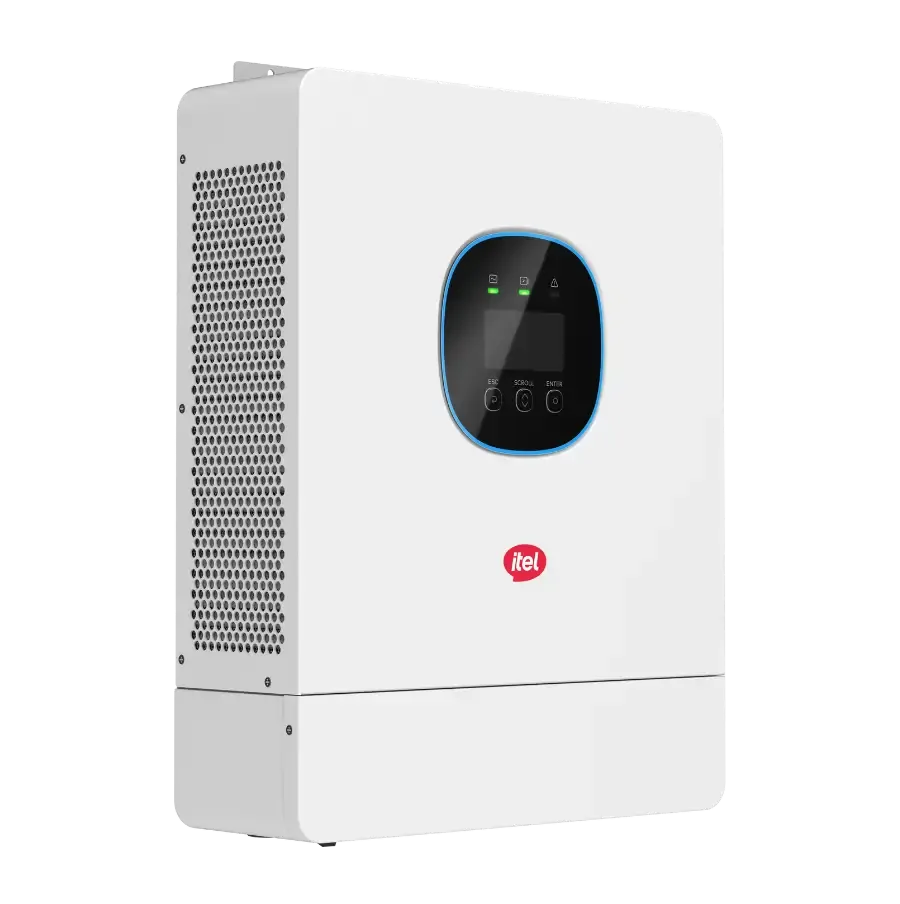

The Itel 12KW IP54 Single Phase Hybrid Inverter is a high-capacity and reliable solar solution designed for residential and small commercial applications. With 12kW output, single-phase support, hybrid capability, IP54 protection, and compatibility with lithium-ion and lead-acid batteries, it’s perfect for powering homes, offices, and small commercial setups across Pakistan.
Brand : Itel
Model : IPV-12K48U
MPP Tracking Efficiency : ≥99.5%
Model : IPV-12K48U
MPP Tracking Efficiency : ≥99.5%
Max. PV Input Power : 16000W
Start-Up Voltage : 75V
Start-Up Voltage : 75V
Nominal AC Output Power : 12KW
Max. Input Current : 27A + 27A
Max. Grid Input Voltage : 380Vrms
Max. Input Current : 27A + 27A
Max. Grid Input Voltage : 380Vrms
Nominal Operating Frequency : 50Hz/60Hz
Max. Output Apparent Power : 12kVA
Nominal AC Output Voltage : 220 VAC/230 VAC/240VAC
Total Voltage Harmonic Distortion : <3%
Nominal AC Frenquency : 50Hz
Max. Output Apparent Power : 12kVA
Nominal AC Output Voltage : 220 VAC/230 VAC/240VAC
Total Voltage Harmonic Distortion : <3%
Nominal AC Frenquency : 50Hz
Battery Type : Lead-acid/Lithium-ion/User Defined
Rated Voltage : 48V
Battery Voltage Range : 40-60V
Rated Voltage : 48V
Battery Voltage Range : 40-60V
Ingress Protection : IP54
Cooling Method : Intelligent Fan Cooling
..
